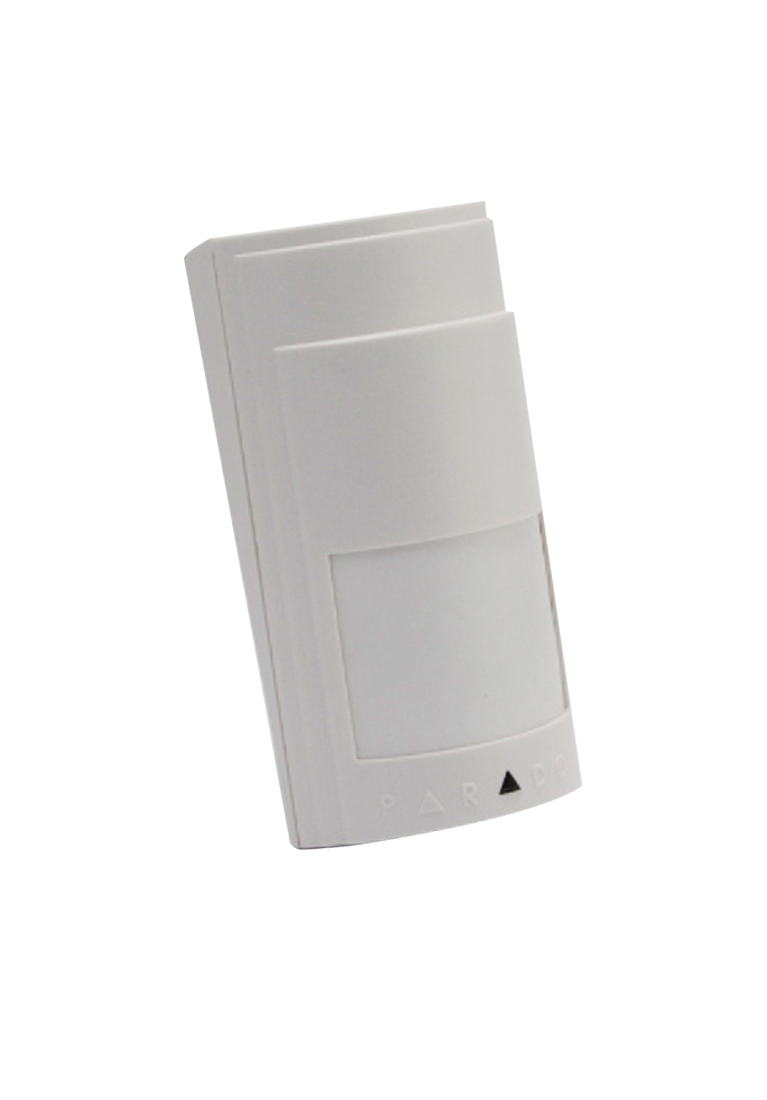

Paradox 525DM Microwave PIR Motion Sensor

The Paradox 525DM Microwave PIR Motion Sensor is a professional-grade dual-technology motion detector designed to deliver exceptional intrusion detection by combining Passive Infrared (PIR) and microwave sensing technologies. Ideal for homes, offices, banks, retail stores, schools, warehouses, hotels, hospitals, factories, and government buildings, the 525DM provides outstanding protection against unauthorized entry while significantly reducing false alarms caused by environmental factors. Its advanced Dynamic Proximity Detection, Auto Pulse Signal Processing (APSP), and adjustable microwave sensitivity ensure reliable detection even in challenging indoor environments. With a 12m × 12m detection range and 90° coverage, it offers comprehensive protection for medium to large indoor areas.

Key Features:

• Dual-Technology Detection combining Microwave + Dual-Element PIR sensors for enhanced accuracy.
• 12m × 12m (40ft × 40ft) Detection Range with a 90° viewing angle.
• Dynamic Proximity Detection for detecting movement close to the detector.
• Auto Pulse Signal Processing (APSP) for intelligent motion analysis and reduced false alarms.
• Adjustable Microwave Sensitivity using an onboard trimpot.
• Installer Test Mode for testing PIR and microwave detection independently.
• Dual Edge Processing for improved motion verification.
• High False Alarm Immunity against environmental interference.
• LED Status Indicator for alarm, walk-test, and diagnostic functions.
• Built-In Tamper Switch to detect unauthorized opening or removal.
• Wide Operating Voltage: 10–16V DC.
• Low Power Consumption: Approximately 30mA.
• Operating Temperature: -20°C to +50°C for dependable performance in varying conditions.
• Compatible with Paradox Alarm Control Panels, including Spectra SP, Magellan, and Digiplex EVO systems.
• Supports Optional SB469 Swivel Mount Bracket for flexible installation.
